  • AT1315 Contact Reed Switch Magnet Sensor with ABS Enclosure for Refrigerator Door

    Model：Magnetic Door Switch Sensor Series

    Key Feature:  Non-Contact Magnetic Switching

    MOQ(Standard)：500 pcs

    MOQ(Customized)：TBD


    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • Consult
Description

Model：Magnetic Door Switch Sensor Series

Key Feature:  Non-Contact Magnetic Switching

MOQ(Standard)：500 pcs

MOQ(Customized)：TBD

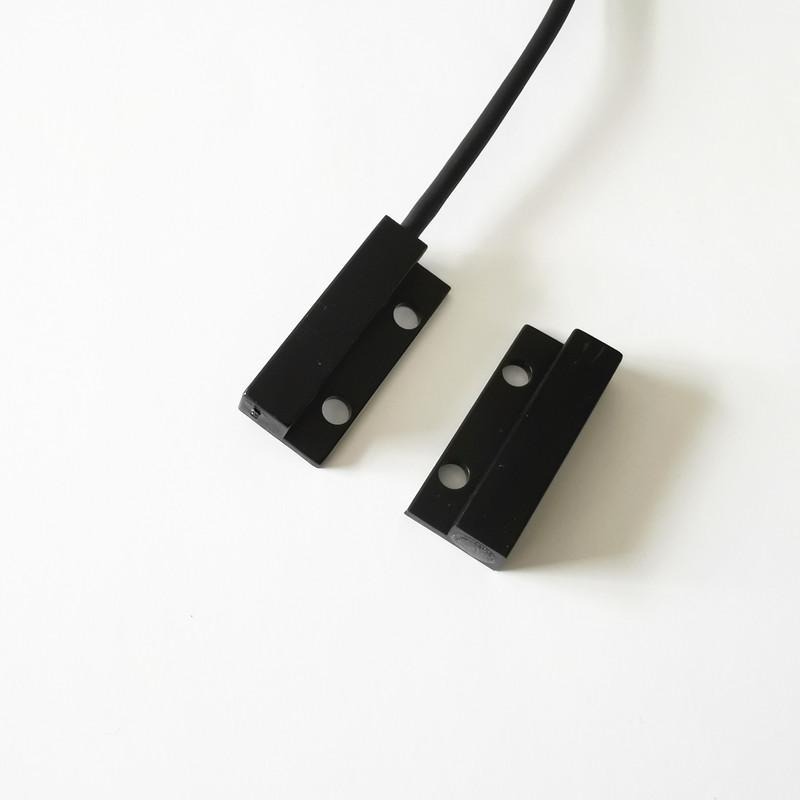

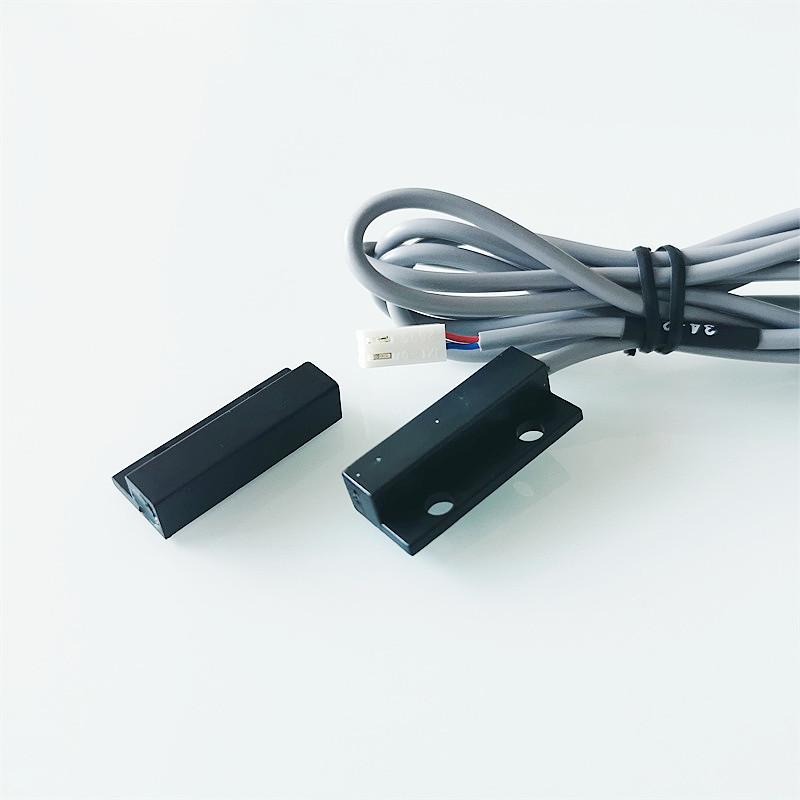

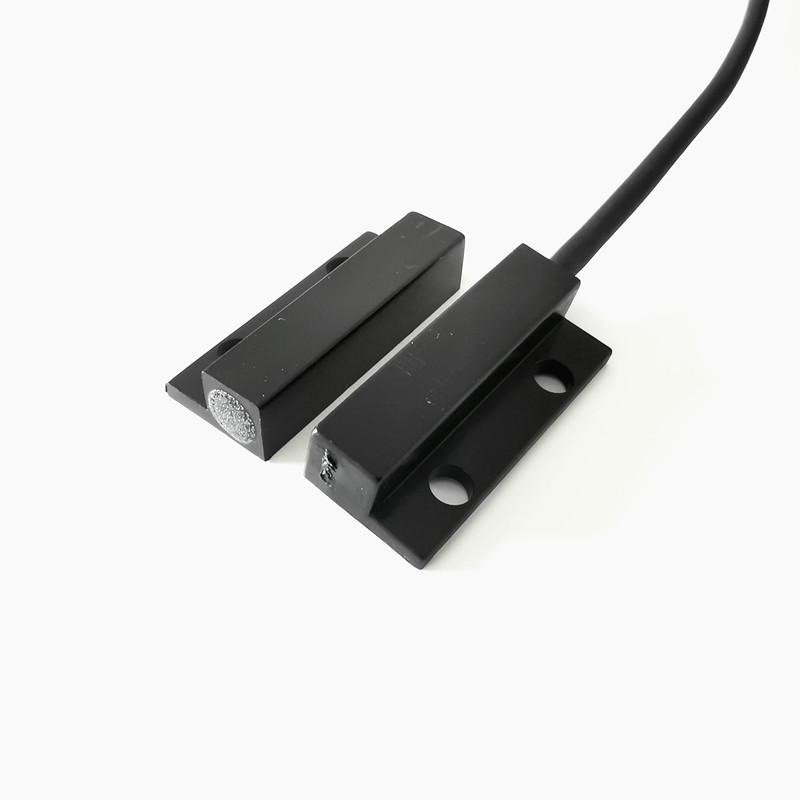

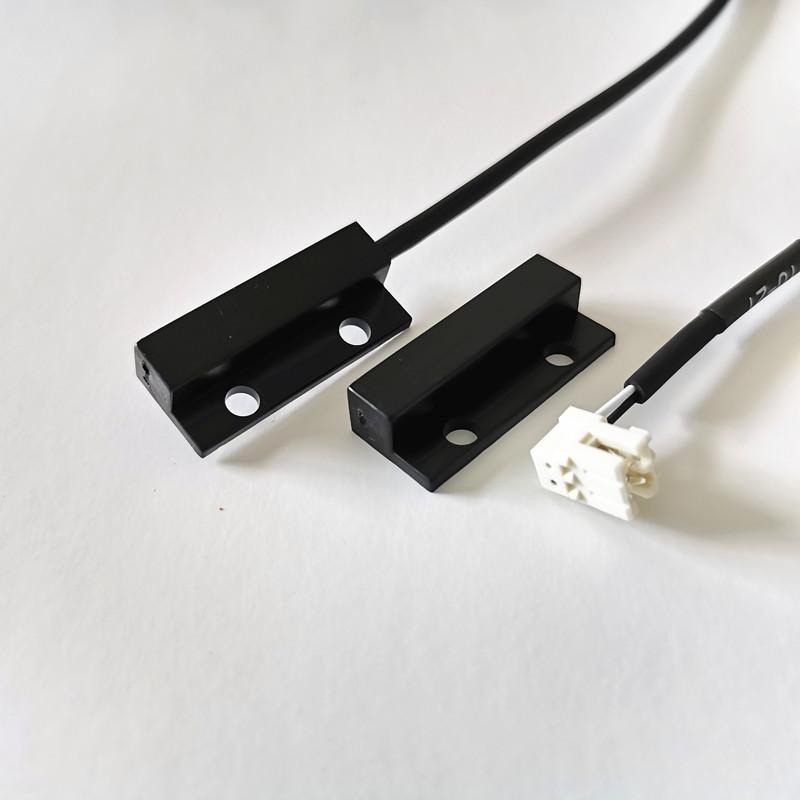

AT1315 Contact Reed Switch Magnet Sensor with ABS Enclosure for Refrigerator Door


The AT1315 Magnetic sensor are uniquely designed and constructed to flanged mounting to refrigerator door or drawer. One part of the switch contains arranged reed switches, the other part contains a matching magnets,they work together producing a symmetrical

magnetic field.


It's case design enables screw or adhesive mounting. Rated working temperature designed from 80,105°C and 150°C. It is capable of switching up to 265Vac/300Vdc at 10VA.


Key Parameters:


Sensing ComponentMagnetic SensorCase MaterialPBT/ABS/Nylon Black or White
Working Temp-30℃～+80℃  / -30～105℃ / -30℃～+105℃Cable MaterialPVC/XLPE/TPE
MagneticNdFeB magnetsSizesABS14x34mm
Switch ElementFluxe-14ConnectorOn request
Hi-Pot>250VDCMaxmim Currency1A
Initial Contact Resistance≤300mΩContactor Load10W


Typical Applications

• Position and limit sensing

• Security system switch

• Door switch

• Linear actuators

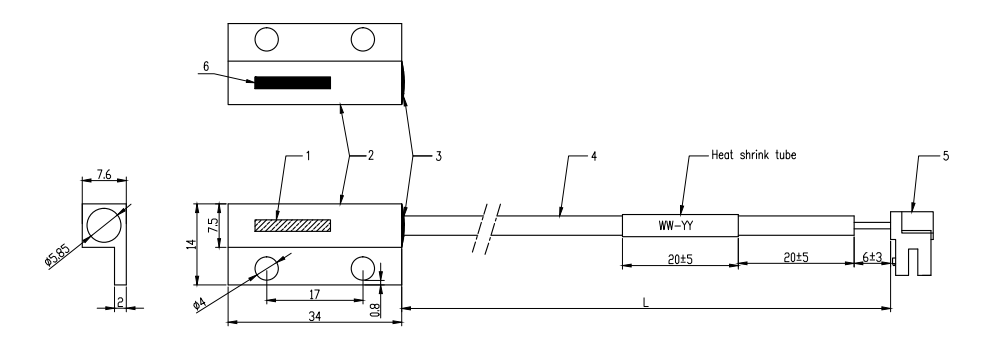

Typical Sizes:

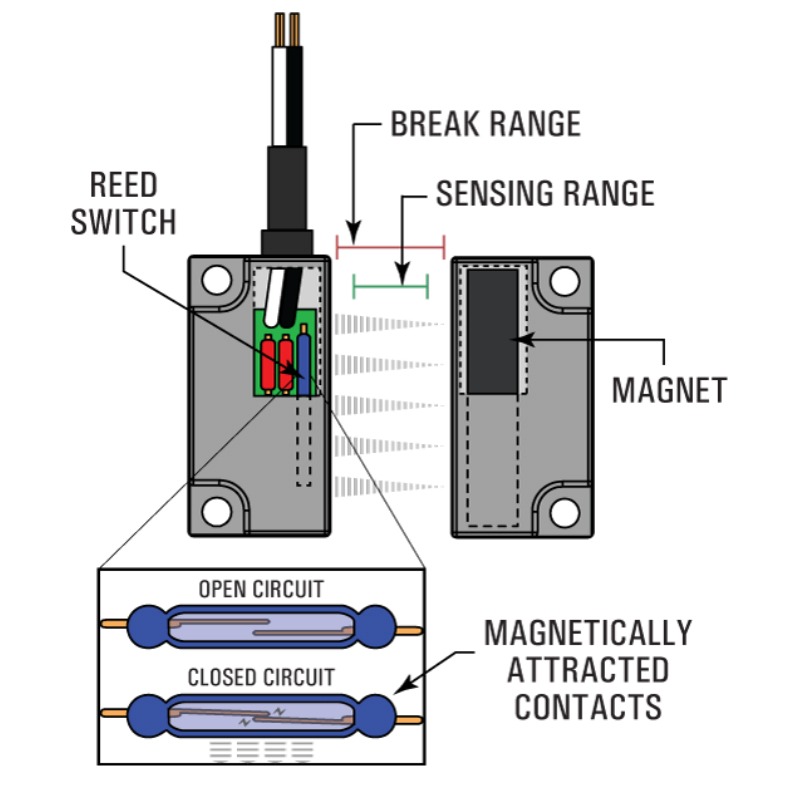

Working Principle：
