Product Brief Describtion：

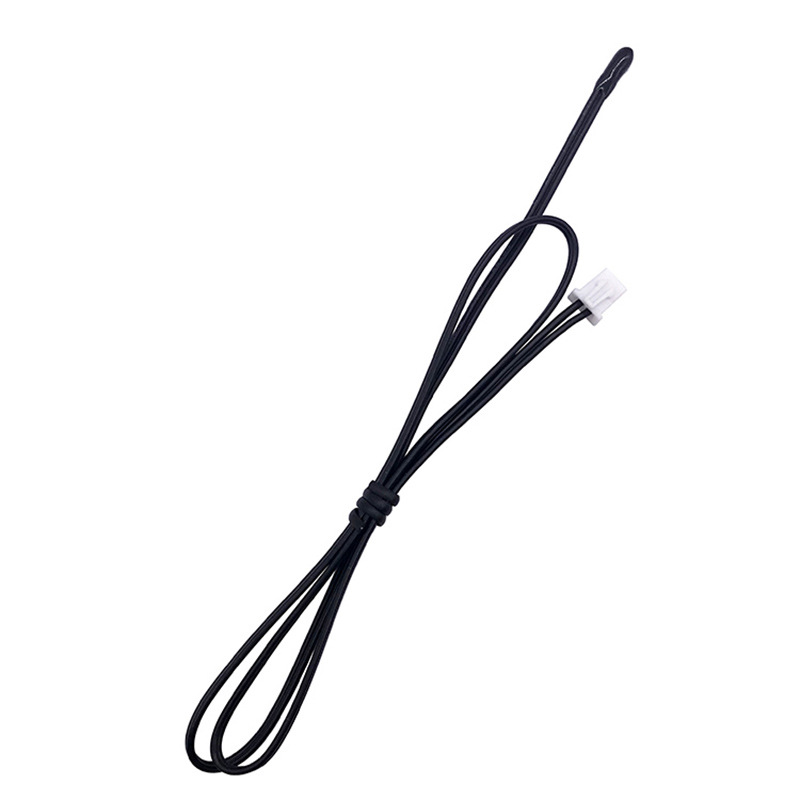

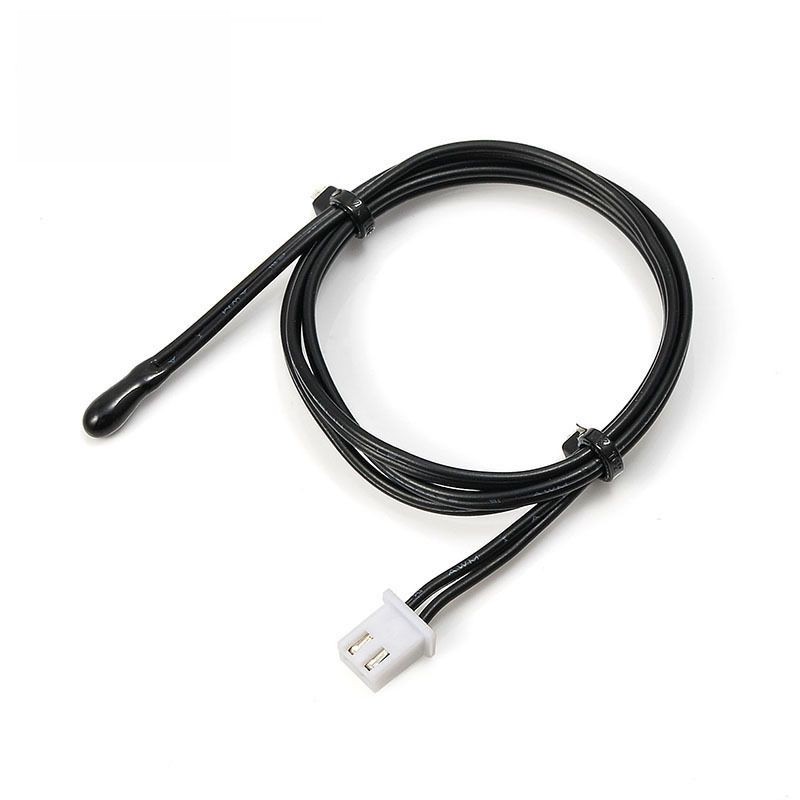

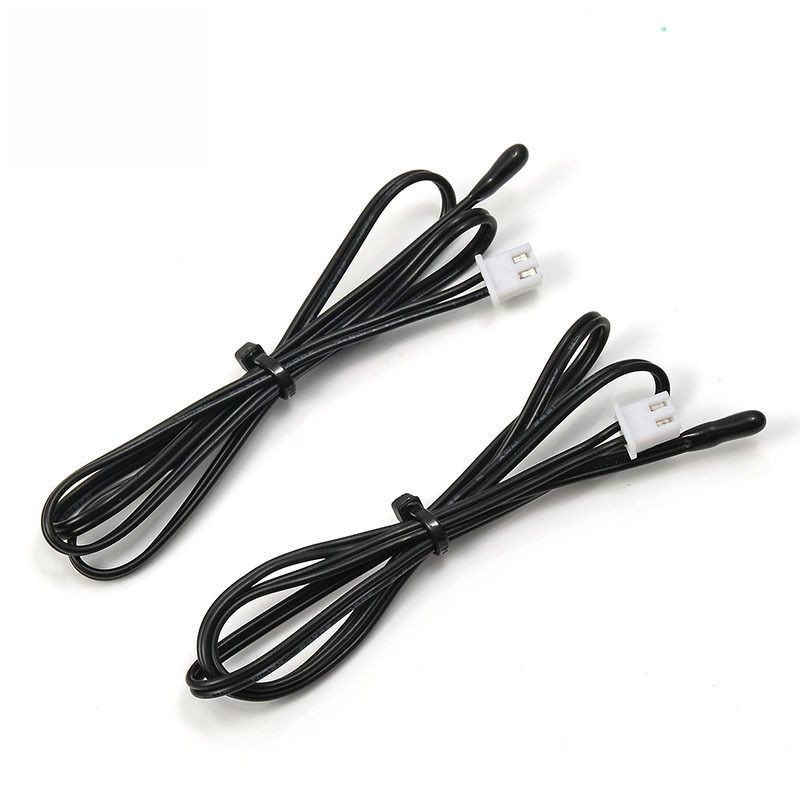

MF52 NTC thermistor sensor, epoxy NTC temperature probe, MF52 temperature sensor, wired NTC thermistor probe, NTC sensor with 2-pin connector
Typical Application:
HVAC Temperature Control Systems
Accurate temperature monitoring and thermal regulation for HVAC equipment, air conditioners, heat pumps, and ventilation systems.
Ambient Environment Temperature Monitoring
Reliable ambient temperature sensing for weather stations, smart buildings, environmental monitoring, and outdoor measurement devices.
Greenhouse Climate Monitoring Systems
Continuous temperature monitoring for greenhouse climate control, improving crop growth conditions and agricultural efficiency.
Industrial Equipment Temperature Detection
Real-time temperature detection for motors, transformers, industrial machinery, and automation control systems.
Feature & Advantage

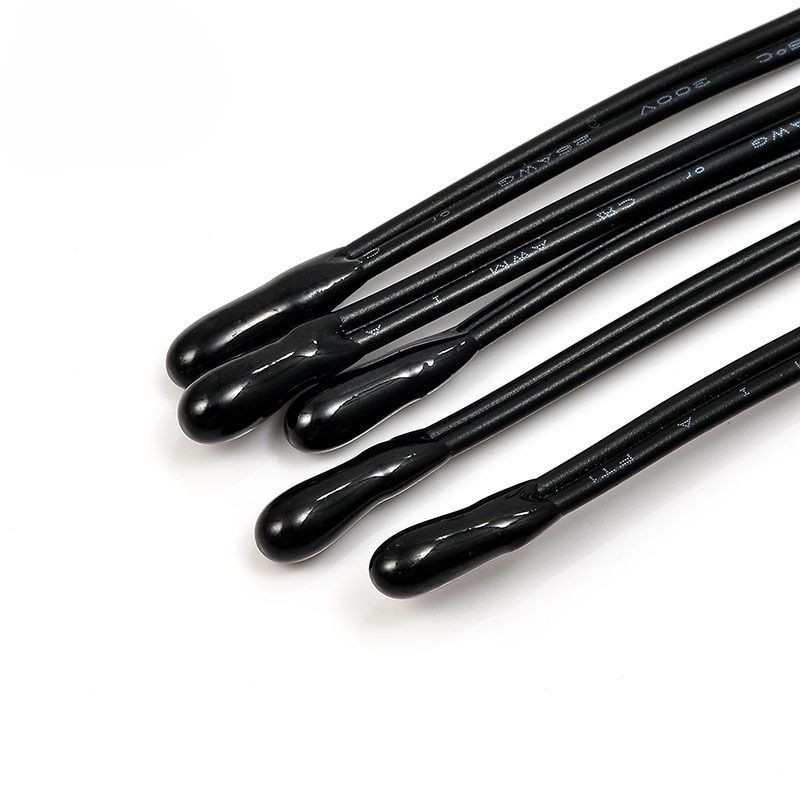

Compact Epoxy Encapsulation Design
The epoxy encapsulated structure provides a compact size, excellent mechanical strength, and reliable protection for stable temperature sensing performance.
High Reliability and Long-Term Stability
Designed for continuous operation, the sensor offers excellent durability and stable output performance under various environmental conditions.
Flexible Customization Options
Supporting customized dimensions, mounting methods, sensing elements, and cable configurations to meet different application requirements.
Key Parameters
| Water and Dust proof | IP66 |
| Sensing element | NTC Thermistor |
| Temperature range | -30 - +105°C |
| Response time | water (0.4 m/s) T0.63=30s |
| Dissipation Factor | 2.5mW/°C |
| Long-term stability | Drift 3% after 1000h heat or cold store (80°C / -30°C) |
| Dielectric strength | 1500VAC |
| Insulation resistance | 100MΩ@500VDC |
Size Drawing（Typical Standard Size）
