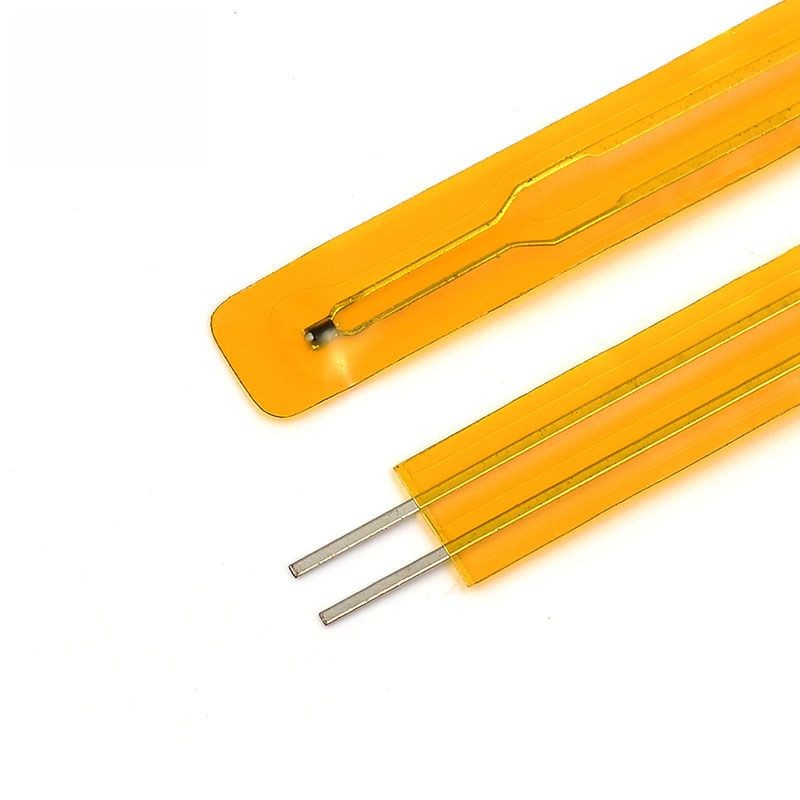

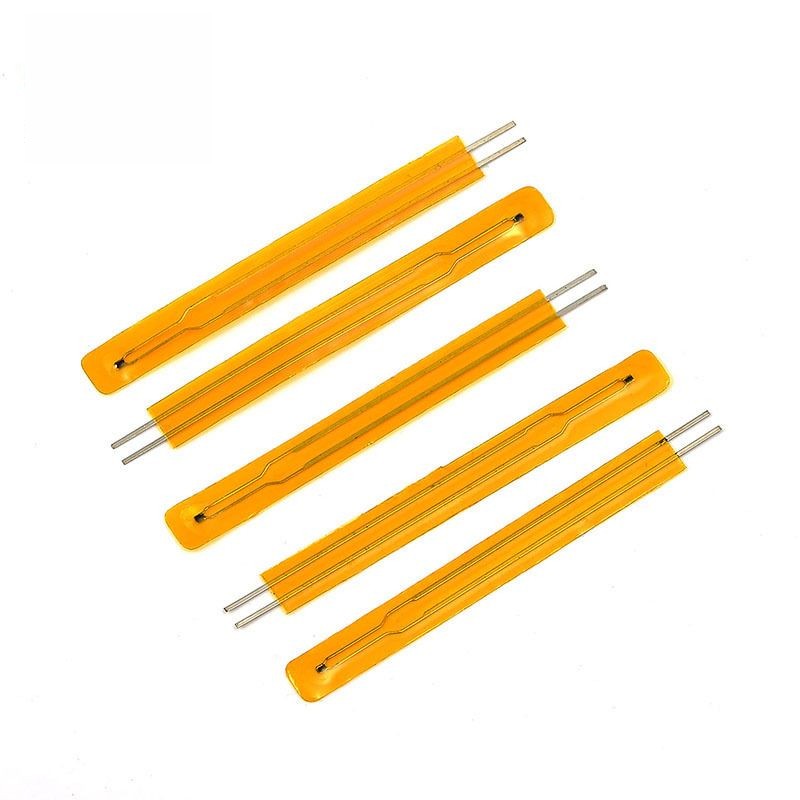

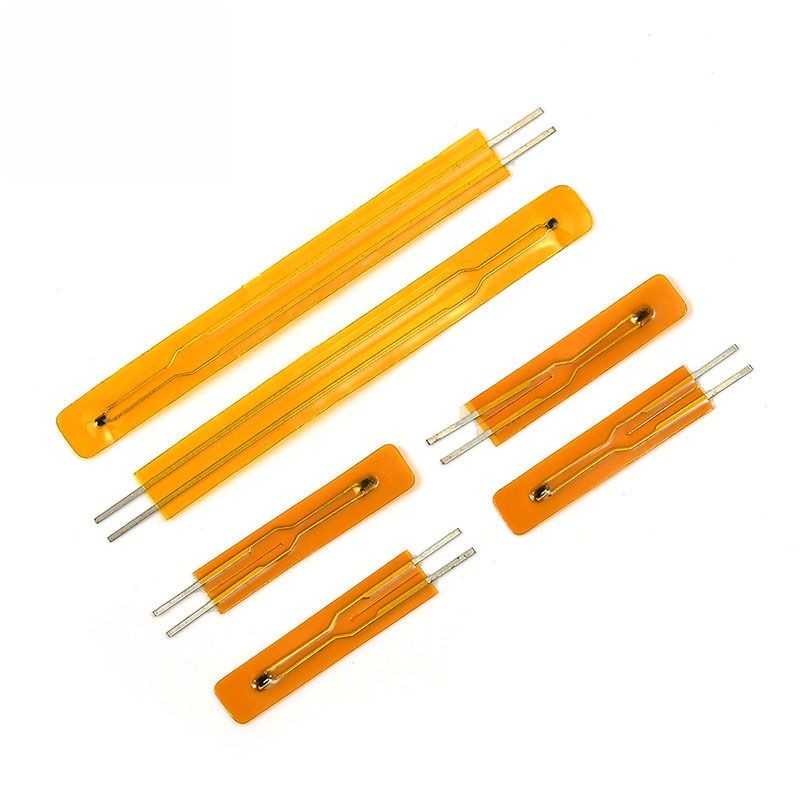

Product Brief Describtion：
MF56 Series High Precision NTC Thermistor is a miniature temperature sensing component featuring thin film polyimide insulation packaging and fast thermal response. With its compact size, high accuracy and stable performance, it is designed for applications requiring precise temperature detection in limited installation spaces.The NTC thermistor supports a wide resistance range from 0.3kΩ to 3000kΩ and operates reliably in temperatures from -30°C to +120°C. It is widely used in lithium battery systems, printers, copiers, heat flowmeters and other electronic equipment requiring fast and accurate temperature monitoring. OEM and customized solutions are available to meet different application requirements.

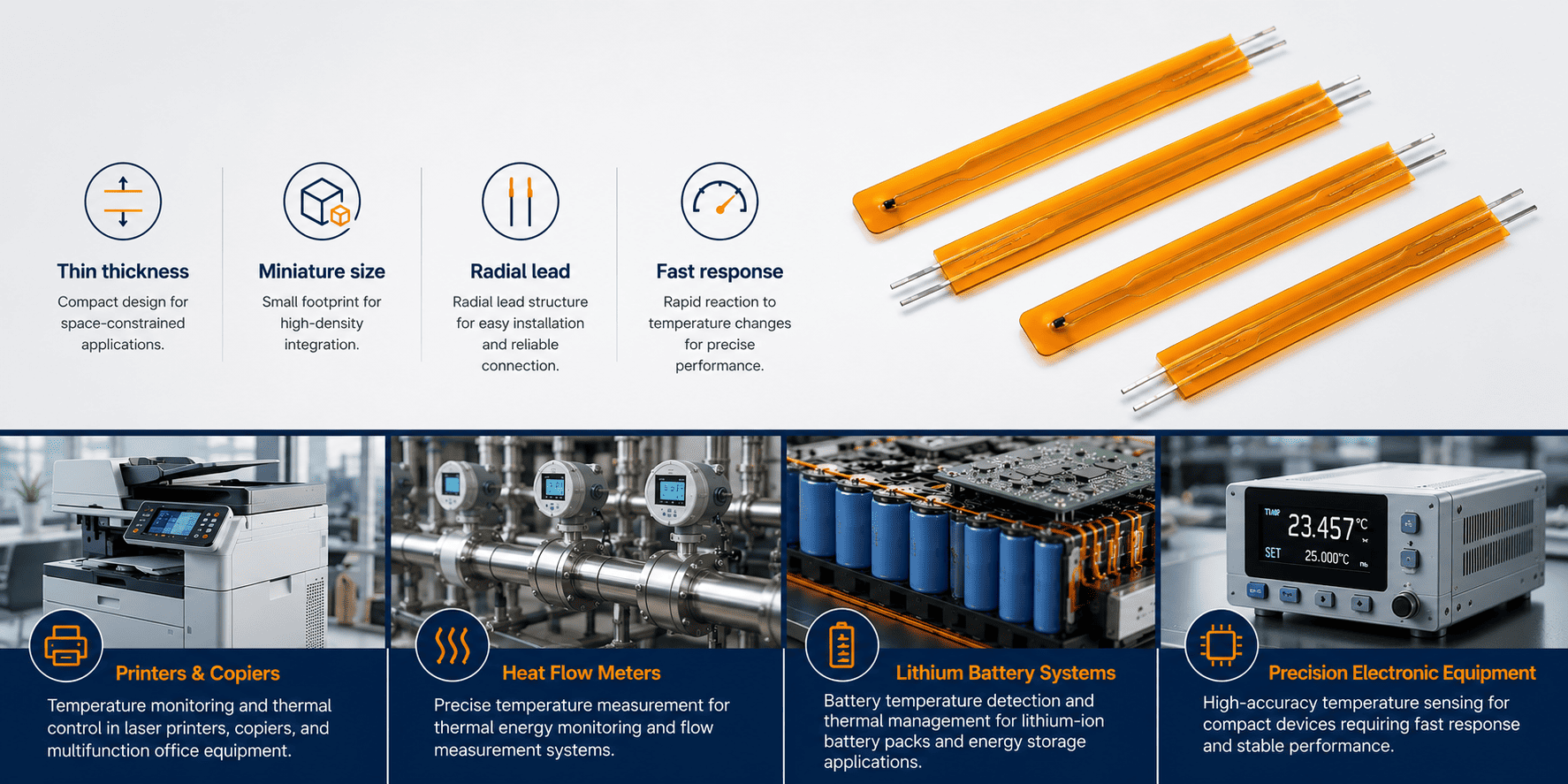

Typical Application:
Printers & Copiers
Temperature monitoring and thermal control in laser printers, copiers, and multifunction office equipment.
Heat Flow Meters
Precise temperature measurement for thermal energy monitoring and flow measurement systems.
Lithium Battery Systems
Battery temperature detection and thermal management for lithium-ion battery packs and energy storage applications.
Precision Electronic Equipment
High-accuracy temperature sensing for compact devices requiring fast response and stable performance.

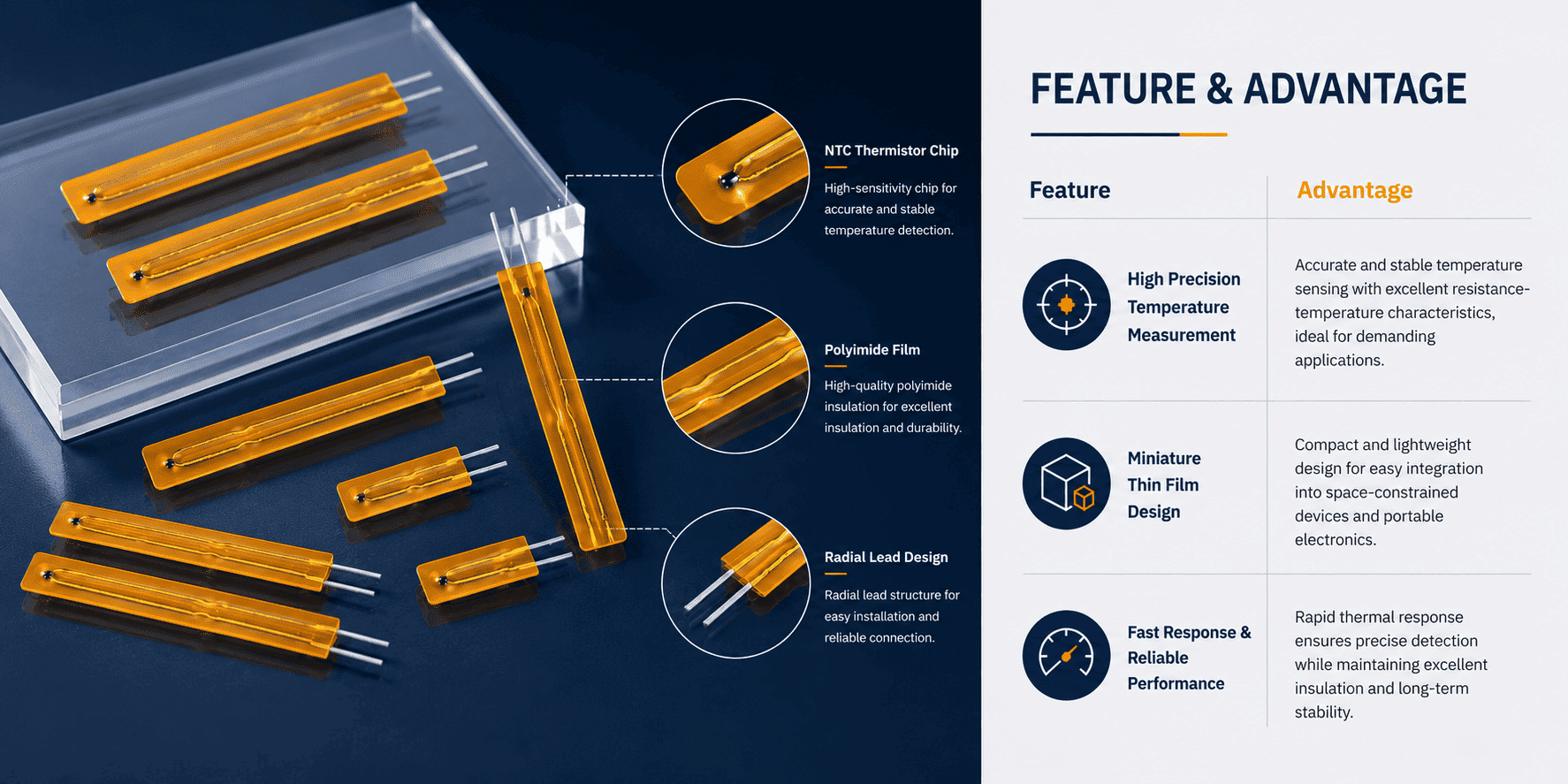

Feature & Advantage
High Precision Temperature Measurement
Provides accurate temperature detection with stable resistance-temperature characteristics, ensuring reliable and precise thermal monitoring for sensitive applications.

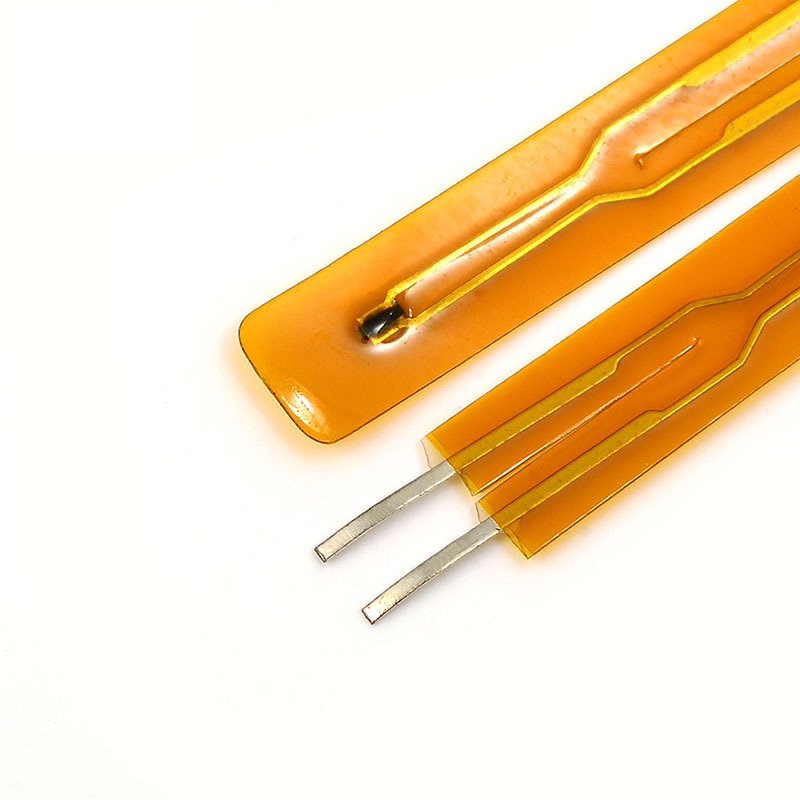

Miniature Thin Film Design
The compact thin film structure with polyimide insulation packaging enables easy installation in limited spaces, making it ideal for small and lightweight electronic devices.
Fast Response & Long-Term Stability
The optimized miniature design delivers rapid thermal response while maintaining excellent insulation performance and reliable operation over extended periods.
Key Parameters
Resistance Rang | 0.3~3000kΩ |
Thermal Time | 5s in constant temperature oil tank |
Operating Temperature Range | -30 - 120 °C |
Dissi. Coef. (In the still air) | 2 mW/°C |
Voltage Withstanding | DC500V, ≥ 100MΩ |
Insulation Resistance | AC 500V , ≥ 1minute |
Ordering Guide
| Model | Resistance @25℃ | Resistance Tolerance | Beta Value Tolerance |
| MF5A-6-103-F | 10KΩ | ±1% | ±1% |
| MF5A-6-103-G | 10KΩ | ±2% | ±2% |
| MF5A-6-103-H | 10KΩ | ±3% | ±3% |
| MF5A-6-103-J | 10KΩ | ±5% | ±5% |
| MF5A-6-103-K | 10KΩ | ±10% | ±10% |

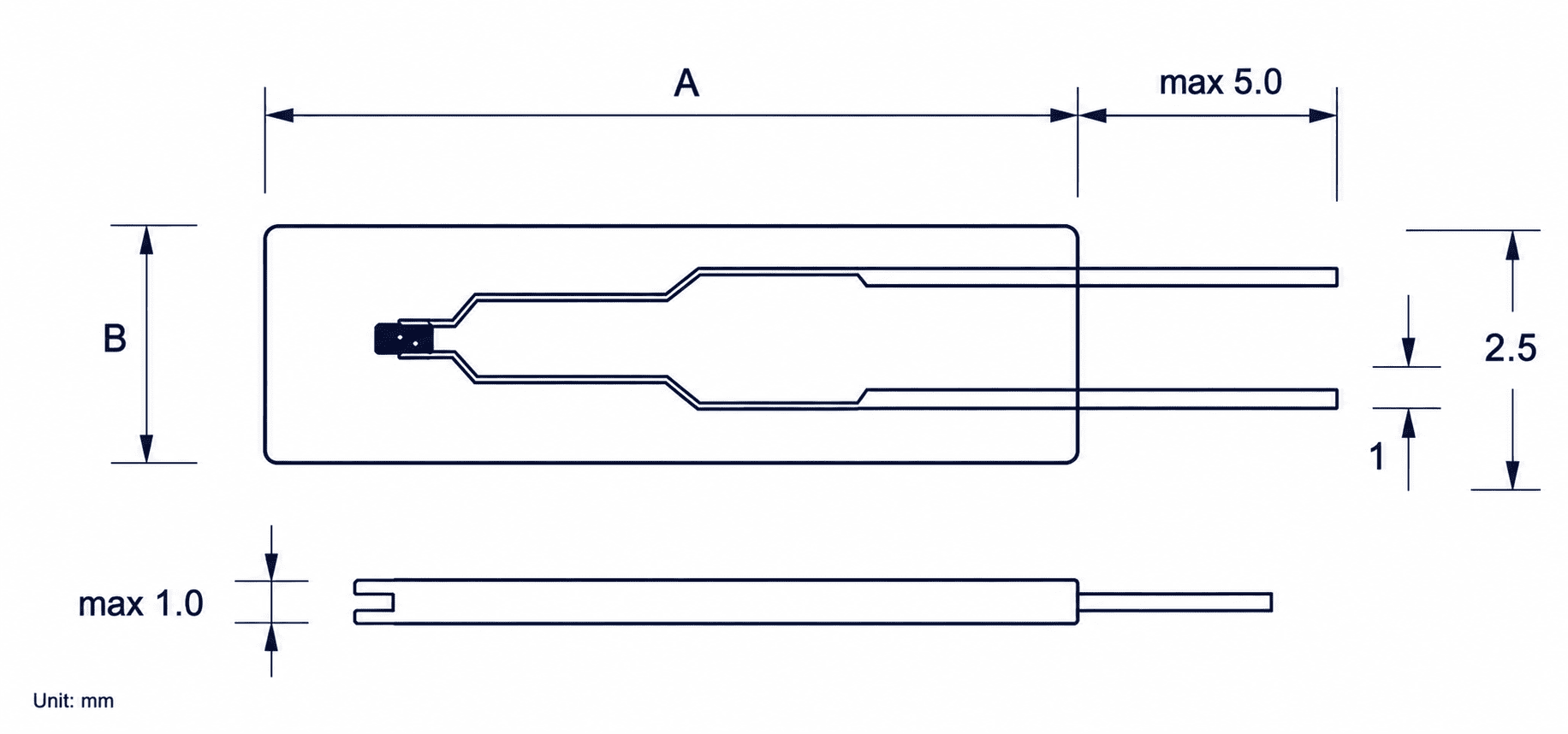

Size Drawing（Typical Standard Size）
