1.Product Brief Describtion：

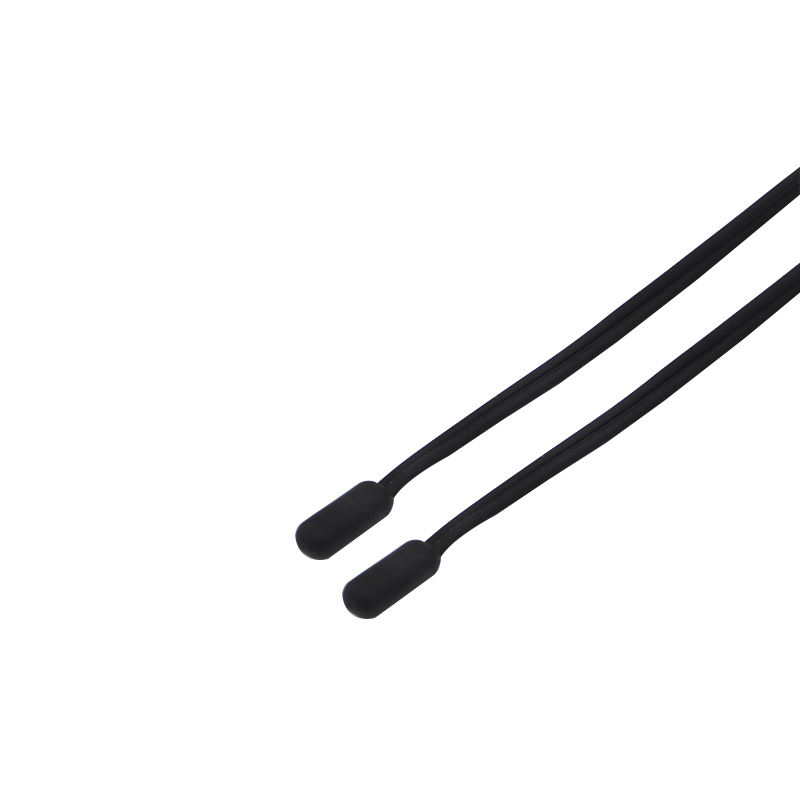

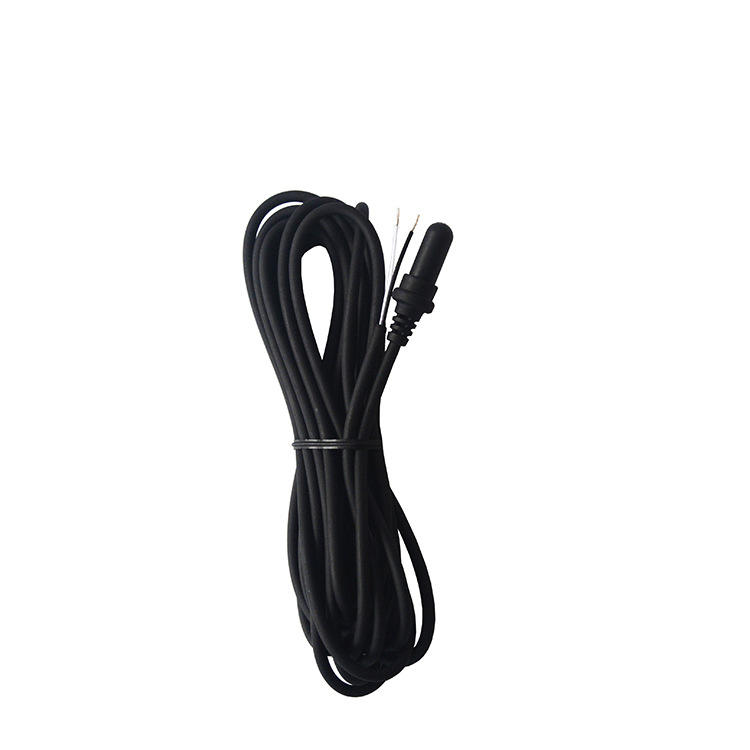

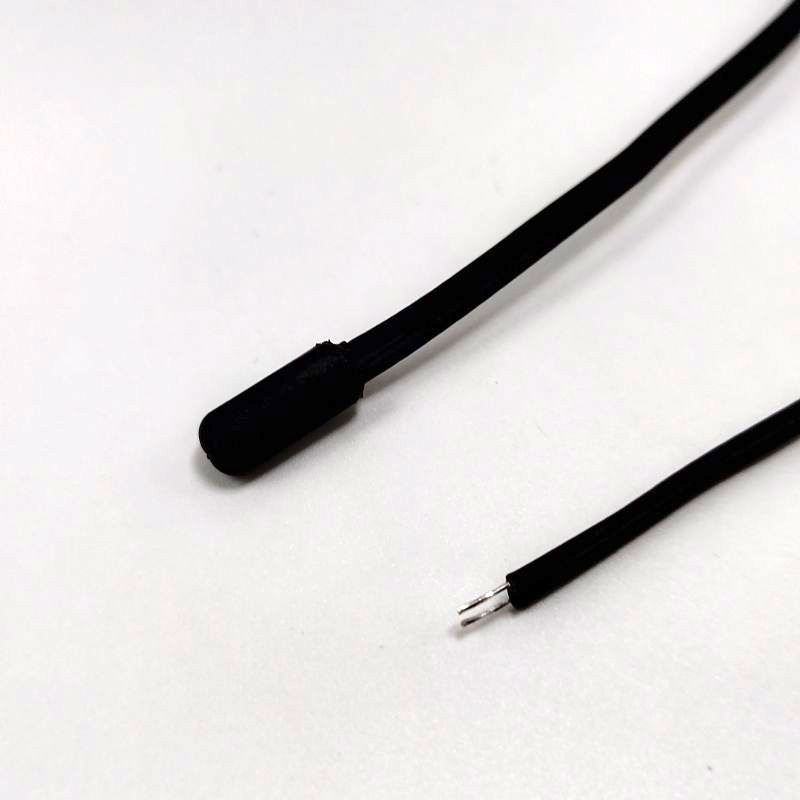

MFE-1 Series overmoulding NTC temperature sensor is a waterproof temperature sensing solution designed with TPE/PVC encapsulation technology. Equipped with high-performance NTC thermistor elements, it provides stable and accurate temperature measurement in humid and demanding environments. With IP67 waterproof protection as standard and IP68 available upon request, the sensor offers excellent insulation, mechanical strength and long-term reliability. The flexible overmoulded design supports customization of dimensions, cable length, connectors and mounting structures, making it suitable for refrigerators, water heaters, washing machines, HVAC systems and industrial temperature monitoring applications.
2. Typical Application:
Home Appliance Temperature Control
HVAC System Temperature Monitoring
Water Heater Temperature Detection
Refrigeration Equipment Temperature Sensing
3.Feature & Advantage
| Feature | Advantage |
IP67/IP68 Waterproof Protection | Designed with TPE/PVC overmoulding technology, the sensor provides excellent water and dust resistance. IP67 is available as standard, with IP68 protection supported for customized applications. |
Flexible Customization Options | The sensor supports customized dimensions, cable length, connectors, mounting structures and sensing elements to meet different application needs. |
High Reliability Performance | Built with high-quality NTC thermistor elements, it delivers stable temperature measurement, excellent durability and long-term operating stability. |
4. Key Parameters
Water and Dust proof | IP67 IP68 on request |
Sensing element | NTC Thermistor |
Temperature range | 30 - +105°C |
Response time | water (0.4 m/s) T0.63=30s |
Dissipation Factor | 2.5mW/°C |
Long-term stability | Drift 3% after 1000h heat or cold store (80°C / -30°C) |
Dielectric strength | 1500VAC |
Insulation resistance | 100MΩ@500VDC |
5. Size Drawing
Typical Standard Size
